Gauge : 1676 mm
Length overhead stocks : 15510 mm
Length Over coupling faces : 16780 mm
Width over body : 3048 mm

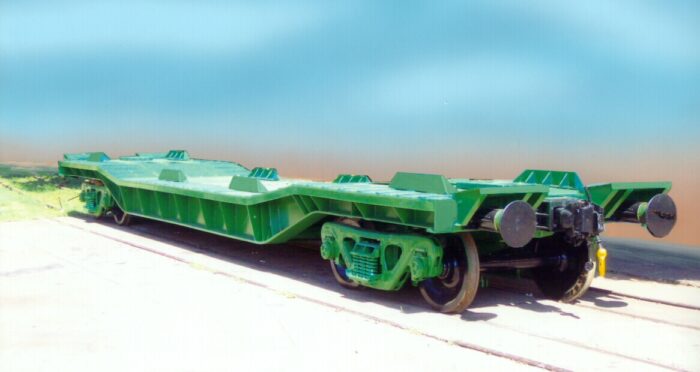

| BOGIE WELL TYPE WAGON |
Download Brochure
|
|---|
Broad Gauge : 1676 mm
Length overhead stocks : 13716 mm
Length over coupling faces : 14998 mm
Width over body : 3200 mm
Track Gauge – 1676 mm
Body length (Overall) – 21336 mm
Body width (Overall) – 3250 mm
Height of roof from Rail level – 3991 mm
Maximum Speed : 110 kmph
Axle Load (max) : 20.32 Tonnes
Power : 340 hp @ 1800 rpm
Customer : Indian Railways
Engine : Diesel, 6 Cylinder naturally aspirated, Air cooled
Power : 79 kW (106 hp) @ 2300 rpm
Hopper Capacity : 35 m3
Maximum Speed : 80 kmph
Maximum Total Weight : 81 Tonnes
Clearance : Indian Railways
Length (Overall) : 162 m (532 ft)
Width : 3.25 m (10 ft 6 in.)
Height : 4.27 m (14 ft)
Track Gauge : 1676 mm (5 ft 6 in.)
Max. Travel Speed : 100 km/h (62 mph)
Maximum Speed : 80 kmph
Tare Weight : 22 Tonnes
Engine Make : NTA 855L Cummins
Engine Model: 400 hp @ 2100 rpm
Gauge : 1676 mm
Tare Weight : 22.4 Tonnes
Pay Load : 58.88 Tonnes
Gross Load : 81.28 tonnes
Gauge : 1676 mm
Tare Weight : 20.52 Tonnes
Pay Load : 71.08 Tonnes
Gross Weight : 91.60 Tonnes
Broad Gauge : 1676 mm
Length Overhead stocks : 14500 mm
Length Over coupling faces : 15782 mm
Width over Body : 3550 mm
Broad Gauge : 1676 mm
Length Overhead stocks : 18460 mm
Length Over coupling faces : 19742 mm
Width over body : 3200 mm
